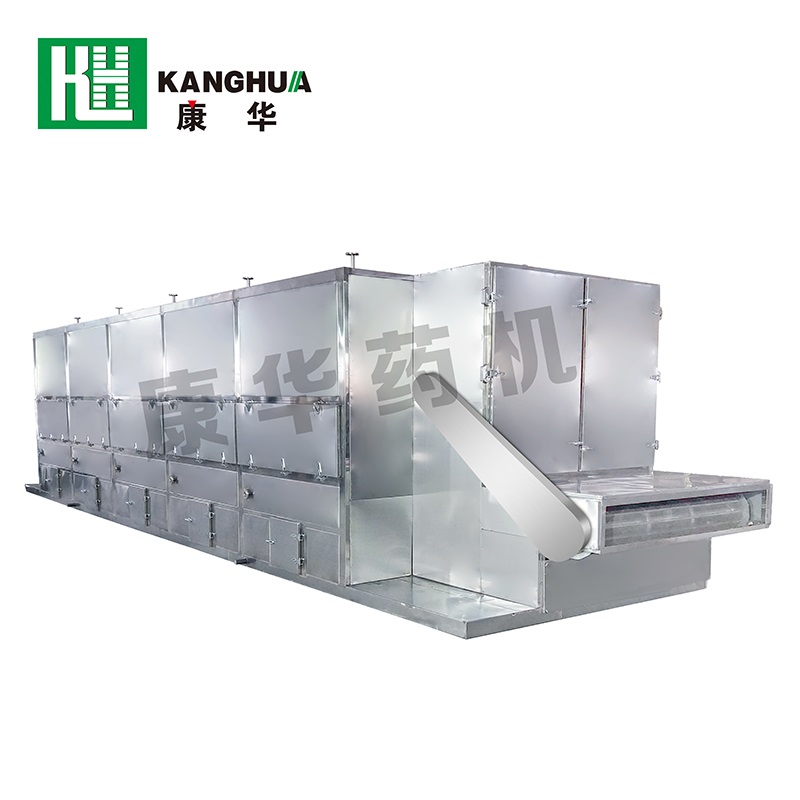

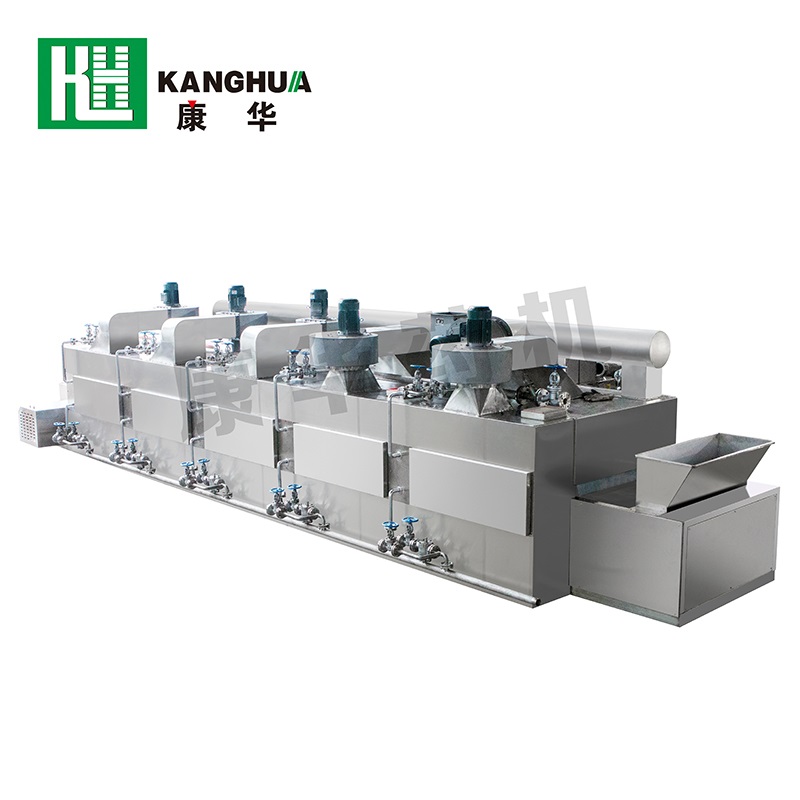

DW Series Mesh Belt Dryer (Steam Heating)

DW Series Mesh Belt Dryer (Steam Heating)





Product Video


Detail



Main uses:

It is suitable for drying sheet-like, strip-like and granular materials with good air permeability. It is particularly suitable for materials with high moisture content such as dehydrated vegetables and Chinese herbal decoction pieces, where high temperature is not allowed. For the paste-like materials of dehydrated filter cakes, they can also be dried after granulation or being made into rods.

Main features:

It has the advantages of fast drying speed, high evaporation intensity and good product quality. The recycling of hot air has a significant energy-saving effect and meets GMP requirements.

Working principle:

 When the mesh belt dryer is in operation, cold air is heated through a heat exchanger. By adopting a scientific and reasonable circulation method, the hot air flows through the materials to be dried on the mesh belt for uniform heat and mass exchange. Under the action of the circulating fan, the hot air flow in each unit of the whole machine circulates, and the low-temperature and high-humidity air is discharged. Complete the entire drying process smoothly and efficiently.

Main technical parameters:





 Model

Capacity

(kg/h)

Network bandwidth/band length(m)

Steam consumption(kg/h)

Power

(kw)

Dimension

(mm)

Weight

(kg)

DW-1.2-8

200-500

1.2 / 8

120-130

16.2

9550×2430×2860

3200

DW-1.2-10

350-700

1.2 / 10

150-375

18.4

11150×2430×2860

4000

DW-1.6-8

450-900

1.6 / 8

150-375

16.2

9550×2630×2860

4600

DW-1.6-10

600-1100

1.6 / 10

170-470

18.4

11150×2630×2860

5400
